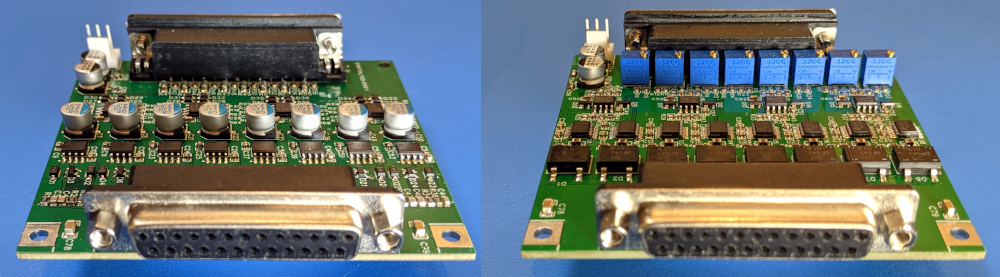

Eight IN & Eight OUT

Eight channel balanced input to unbalanced output and unbalanced output to balanced output cards with gain matching.

Downloads:

EightIN Specifications
EightOUT Specifications

Eight In & Eight Out are high performance, flexible gain circuit cards for use in console rebuilding or diy projects. Applications would include: adding balanced inputs and outputs to consoles whose native I/O is unbalanced, balancing patchbay insert points or bringing semi-pro output levels up to usable pro levels.

Price: $190 ea pcb
Before ordering, please contact us to discuss input & output levels. Contact: info@audio-simplified.com
Pay via PayPal
Select
Specify Input or Output Levels

Overview

  • Eight IN:
    • THAT 1200 Series InGenius Balanced Line Receiver ICs
    • Eight electronically balanced inputs.
    • Eight unbalanced outputs.
    • Gain structure is set during assembly,
      Common configuration examples:
      +4dBu input; -2dBu output
      +4dBu input; -10dBv output
      Other configurations are available, including different gains for each channel.
  • Eight OUT:
    • THAT 1606 Series OutSmarts Balanced Line Driver ICs
    • Eight unbalanced inputs.
    • Eight electronically balanced outputs.
    • Gain and input impedance are set during assembly.
      Common configurations examples:
      10k input impedance; -2dBu input; +4dBu output
      50k input impedance; -10dBv input +4dBu output
      Other configurations are available, including different gains for each channel.
    • Gain will automatically compensate for balanced or unbalanced outputs (as with a transformer).
  • Inputs and outputs are on standard pinout db-25's for easy interfacing.

Specifications

Balanced Line Inputs:
Nominal Level : +4dBu
Maximum Input level: +24dBu

BalancedLine Outputs:
Nominal Level : +4dBu
Maximum Balanced Output level: +27.5dBu into 600Ω
Maximum UnBalanced Output level: +22dBu into 600Ω

Frequency Response:
20hZ to 20kHz +0.01dB,-0.11dB

Noise level:
-90.5 dBa

Distortion:
THD: .00847%
IMD: .011%

Power:
±15-18vDC well regulated
Eight IN: 80ma
Eight OUT: 768ma (max - all outputs shorted to ground)

Dimensions:
length: 80mm, width: 80mm , height: 20mm
length: 3.15", width: 3.15", height: .79"
